Socketweld Fittings Manufacturer, exporter & supplier in Mumbai, India.
Alliance Steel Industries is a trusted manufacturer, exporter, and supplier of high-quality Socket Weld Fittings designed for reliable performance in demanding industrial piping applications. Our socket weld fittings are manufactured using quality raw materials and advanced production processes to ensure dimensional accuracy, strength, durability, and leak-resistant connections.
Socket Weld Fittings are widely used for connecting pipes in high-pressure and high-temperature piping systems. Their compact design and strong welded connection make them an ideal choice for applications where reliability, safety, and long service life are essential.
Alliance Steel Industries focuses on supplying Socket Weld Fittings that meet demanding industrial requirements for quality, reliability, precision, and performance. Our experienced team can support customers with standard as well as customized fitting requirements, helping ensure the right product for each piping application.
Socketweld Fittings Specification
| Specifications | ASTM A182 / ASME SA182 |
|---|---|
| Size | 1/8″ NB to 4″ NB Socket Weld |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Class | 3000/ 6000/ 9000lbs |
| From | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees. |
Key Features
Stainless Steel Socket Weld Fittings
| Standards | ASTM A182, ASME SA182 |
| Grades | F201, F202, F301, F302, F304, F304L, F309, F310, F316, F316L, F316LN, F317L, F321, F347, 405, 409, 410, 420, 430, 440C, F904L, Al-6XN (N08367), Nitronic 50 / 60, 422, 416, 446, Nimonic 80 (N07080), A286(S66286), 17-4ph, 15-5ph, Alloy 28 (N08028). |
Alloy Steel Socket Weld Fittings
| Standards | ASTM A182, ASME SA182 |
| Grades | F11, F12, F22, F5, F9, F91. |
Carbon Steel Socket Weld Fittings
| Standards | ASTM A193 / A320 |
| Grades | MS, Gr. B7, B8, B16, Gr. L7, 4.6, 8.8, 10.9 |
Duplex & Super Duplex Steel Socket Weld Fittings
| Standards | ASTM A182, ASME SA182 |
| Grade | 2205 (F51, S31803 / F60, S32205), SMO254 (F44, S32154), 2507 (F53, S32750 / F55, S32760), Ferralium 255 (F61, S32550) |
Nickel Alloy Socket Weld Fittings
| Standards | ASTM B564 / A182 |
| Grade | 200 (N02200), 201 (N02201), Alloy 20 (F20, N08020) |
Monel Alloy Socket Weld Fittings
| Standards | ASTM B564, ASME SB564 |
| Grade | 400 (N04400), 500 (N05500). |
Inconel Socket Weld Fittings
| Standards | ASTM B564 / A182 |
| Grade | 600 (N06600), 601 (N06601), 625 (N06625), 718 (N07718), 800 (N08800), 800H (N08810), 800HT (N08811), 825 (N08825), 904L (N08904) |
Copper Alloy Socket Weld Fittings
| Standards | ASTM B 151 ASME SB 151 |
| Grade | Commercial, ETP, OFE, CuNi 90/10 (C70600), CuNi 70/30 (C71500), Brass, Naval Brass, Aluminium Bronze, Admiralty Brass, Beryllium Copper. |
Hastelloy Socket Weld Fittings
| Standards | ASTM B564, ASME SB564 |
| Grade | C726 (N10276), C4 (N06455), C22 (N06022), C2000 (N06200), X (N06002), B2 (N10665), B3 (N10675). |
Titanium Socket Weld Fittings
| Standards | ASTM B381, ASME SB381 |
| Grade | F2, F5 , F7. |

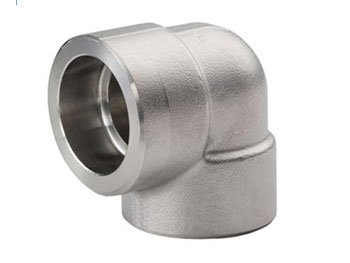

Socket Weld 90 Deg Elbow

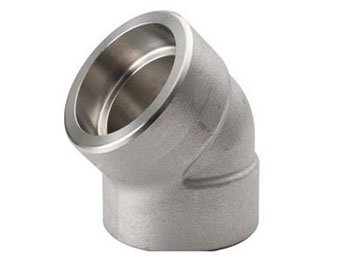

Socket Weld 45 Deg Elbow

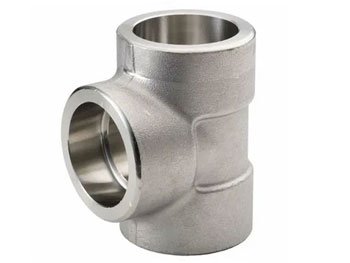

Socket Weld Tee

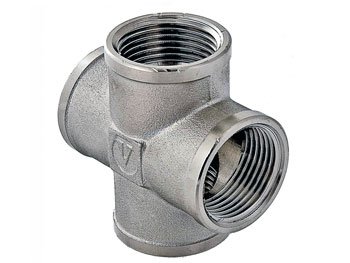

Socket Weld Cross

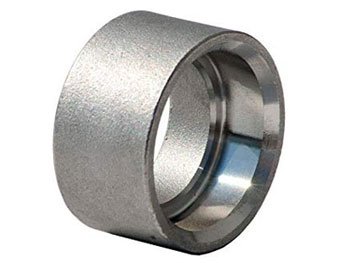

Socket Weld Half Coupling

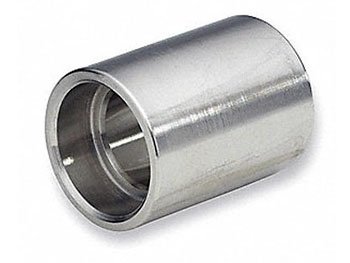

Socket Weld Full Coupling

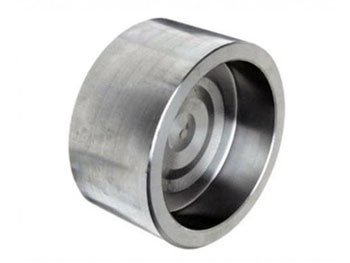

Socket Weld Cap

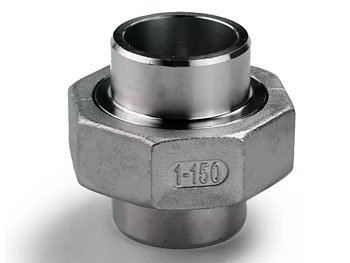

Socket Weld Union
Socketweld Fittings Class, Size & Wall Thickness
| Description | Class Designation | ||
|---|---|---|---|
| 3000 | 6000 | 9000 | |
| Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps |
1/2 – 4 | 1/2 – 2 | 1/2 – 2 |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| Pipe Size by Wall Thickness |
SCH 80 / XS | SCH 160 | XXS |
Soketweld Fittings Size Range & Dimensions
| DN-NPT | MAJOR DIAMETER MM | TAPPING /DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
Weight Chart of Socket Weld Fittings
| Pipe Size | A | B | QTY | Weight Chart |
|---|---|---|---|---|
| ¼ | 0.81 | 0.88 | 160 | 0.20 |
| ⁄ | 0.97 | 1.00 | 130 | 0.26 |
| ½ | 1.12 | 1.31 | 100 | 0.57 |
| ¾ | 1.31 | 1.5 | 75 | 0.71 |
| 1 | 1.5 | 1.81 | 40 | 1.08 |
| 1 ¼ | 1.75 | 2.19 | 25 | 1.68 |
| 1 ½ | 2.00 | 2.44 | 18 | 2.38 |
| 2 | 2.38 | 2.97 | 10 | 3.55 |
| 2 ½ | 3.00 | 3.62 | 4 | 6.22 |
| 3 | 3.38 | 4.31 | 2 | 10.36 |
| 4 | 4.19 | 5.75 | 1 | 23.91 |
