High-Quality Industrial Pipes & Tubes Manufacturer, Exporter & Supplier in Mumbai, India.
Alliance Steel Industries is a trusted manufacturer, exporter and supplier of high-quality Pipes & Tubes for diverse industrial, engineering, construction and infrastructure applications. We offer a comprehensive range of pipes and tubes manufactured from premium-grade materials and available in different sizes, thicknesses, grades, dimensions and specifications.
Our product range includes Stainless Steel Pipes, Carbon Steel Pipes, Alloy Steel Pipes, Seamless Pipes, Welded Pipes, ERW Pipes, EFW Pipes, MS Pipes and Industrial Tubes.
We supply products suitable for demanding applications where strength, dimensional accuracy, corrosion resistance, durability and reliable performance are essential.
Pipes & tubes Specification
| Specifications: | ASTM, ASME, API, IBR, DIN, BS, EN, IS, AMS, JIS, & Other International Standards. |
|---|---|
| Seamless Tube Size: | 1/2" NB - 16" NB |
| Welded Tube Size: | 1/2" NB - 24" NB |
| EFW Tube Size: | 6" NB - 24" NB |
| Pipe Size: | 1/2" NB - 60" NB |
| Outside Diameter: | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB |
| Schedule : | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Type : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form : | Round, Square, Rectangular, Hydraulic Etc |
| Length : | Single Random, Double Random & Cut Length. |
| End : | Plain End, Beveled End, Treaded |
Key Features
Stainless Steel Pipes & Tubes
| Standards | ASTM A312 / A213 / A269 / A358 / A778 |
| Grades | TP 201, 202, 301, 302, 304, 304L, 309, 310, 316, 316L, 316LN, 316Ti, 317L, 321, 347, 405, 409, 410, 420, 430, 440C, 904L, AL-6XN (N08367). |
Alloy Steel Pipes & Tubes
| Standards | ASTM A335 / A213 |
| Grades | P11, P12, P22, P5, P9, P91, T11, T12, T22, T5, T9, T91. |
Carbon Steel Pipes & Tubes
| Standards | ASTM A106 / A53 / A179 / A333 / A210 |
| Grades | Gr. B, API 5L X42/X46/X52/X56/X60/X65/X70 PSL-1 / PSL-2, Gr, 3, 6, IS 1239, IS 3589, Boiler Tube – BS 3059 – Gr. 320, 360, Gr. A1, BS 6323. |
Duplex & Super Duplex Steel Pipes & Tubes
| Standards | ASTM A789, A790, A928 |
| Grades | 2205 (S31803 / S32205), SMO254 (S32154), 2507 (S32750 / S32760), Ferralium 255 (S32550), SMO 654 (S32654). |
Nickel Alloy Pipes & Tubes
| Standards: | ASTM B 161 ASME SB 161 / ASTM B729 ASME SB729 |
| Grade: | 200 (N02200), 201 (N02201), Alloy 20 (N08020). |
Monel Alloy Pipes & Tubes
| Standards: | ASTM B165 ASME SB165 / ASTM B725 ASME SB725 |
| Grade: | 400 (N04400), 500 (N05500). |
Inconel Pipes & Tubes
| Standards: | ASTM B167,B444, B407, B423, B677 |
| Grade: | 600 (N06600), 601 (N06601), 625 (N06625), 718 (N07718), 800 (N08800), 800H (N08810), 800HT (N08811),– 825 (N08825), 904L (N08904). |
Copper Alloy Pipes & Tubes
| Standards: | ASTM B111 ASME SB111 / ASTM B466 ASME SB466 |
| Grade: | Commercial, ETP, OFE, CuNi 90/10 (C70600), CuNi 70/30 (C71500), Brass, Naval Brass, Aluminium Bronze, Admiralty Brass. |
Hastelloy Pipes & Tubes
| Standards: | ASTM B622 ASME SB622 / ASTM B619 ASME SB619 |
| Grade: | C726 (N10276), C4 (N06455), C22 (N06022), C2000 (N06200), X (N06002), B2 (N10665), B3 (N10675). |
Titanium Pipes & Tubes
| Standards: | ASTM B338 / B861 / B862 |
| Grade: | 2, 5 (Ti6AI4V), 7. |
Cupro Nickel Pipes & Tubes
| Standards: | ASTM B 466 ASME SB 466 / ASTM B 467 ASME SB 467 |
| Grade: | Cupro Nickel 90 / 10 & Cupro Nickel 70/30 |
Copper Pipes & Tubes
| Standards: | ASTM B 280 ASME SB 280 / ASTM B 68 ASME SB 68 |
| Grade: | C12200 |
Mild Steel Pipes & Tubes
| Grade: | IS – 1239 (Part -1) 2004, Equivalent to BS – 1387 / 1985 |
Types of Pipes & Tubes

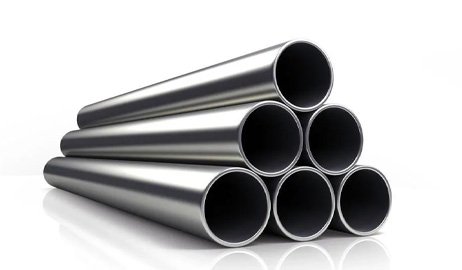

Seamless Pipes & Tubes

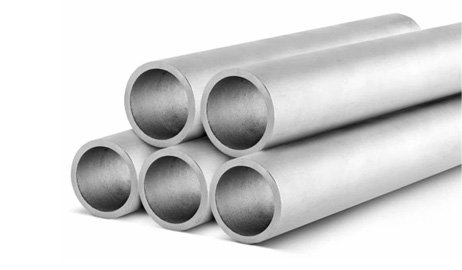

Welded Pipes & Tubes

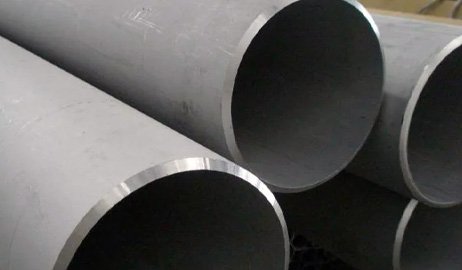

ERW Pipes & Tubes

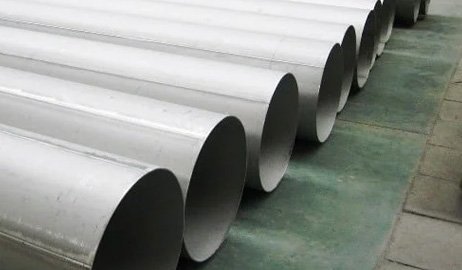

EFW Pipes & Tubes

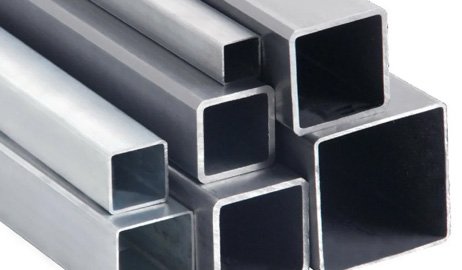

Square Pipes & Tubes

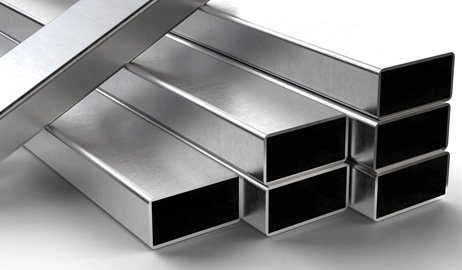

Rectangular Pipes & Tubes

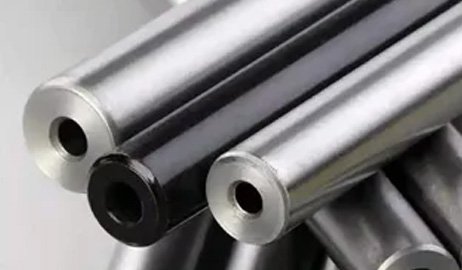

Hydraulic Pipes & Tubes

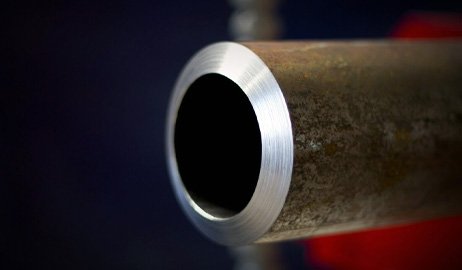

Bevel End Pipes & Tubes

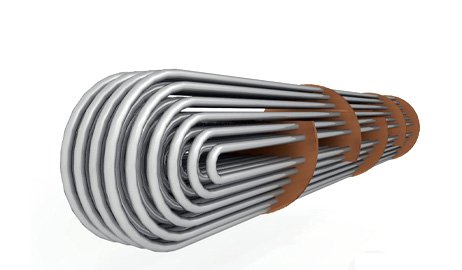

Heat Exchanger Tubing

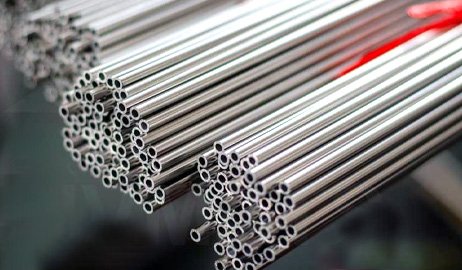

Capillary Tubing

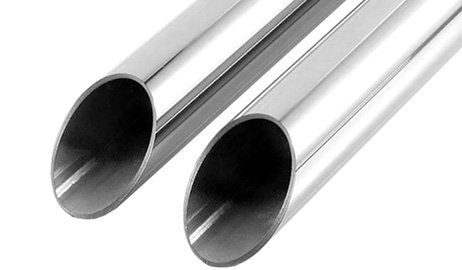

Electro Polished Pipes & Tubes

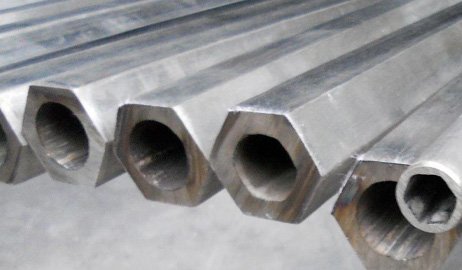

Hexagonal Pipes & Tubes
Pipes & Tubes Size Chart
| Pipe Outer diameter (mm) | Pipe Wall Thickness (mm) | in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
Pipes Dimensions Chart
| Nominal size in Inches | Outside diameter in Inches | Outside diameter in MM | Wall thickness in Inches | Wall thickness in MM | Weight in lb/ft | Weight in kg/m |
|---|---|---|---|---|---|---|
| 1/2 | 0.840 | 21.3 | 0.083 | 2.11 | 0.68 | 1.00 |
| 3/4 | 1.050 | 26.7 | 0.083 | 2.11 | 0.87 | 1.29 |
| 1 | 1.315 | 33.4 | 0.109 | 2.77 | 1.41 | 2.11 |
| 1 1/4 | 1.660 | 42.2 | 0.109 | 2.77 | 1.82 | 2.71 |
| 1 1/2 | 1.900 | 48.3 | 0.109 | 2.77 | 2.1 | 3.13 |
| 2 | 2.375 | 60.3 | 0.109 | 2.77 | 2.66 | 3.96 |
| 2 1/2 | 2.875 | 73.0 | 0.120 | 3.05 | 3.56 | 5.29 |
| 3 | 3.500 | 88.9 | 0.120 | 3.05 | 4.37 | 6.50 |
| 3 1/2 | 4.000 | 101.6 | 0.120 | 3.05 | 5.01 | 7.46 |
| 4 | 4.500 | 114.3 | 0.120 | 3.05 | 5.66 | 8.42 |
| 5 | 5.563 | 141.3 | 0.134 | 3.40 | 7.82 | 11.64 |
| 6 | 6.625 | 168.3 | 0.134 | 3.40 | 9.35 | 13.91 |
| 8 | 8.625 | 219.1 | 0.148 | 3.76 | 13.50 | 20.10 |
| 10 | 10.750 | 273.1 | 0.165 | 4.19 | 18.79 | 27.96 |
| 12 | 12.750 | 323.9 | 0.180 | 4.57 | 24.34 | 36.22 |
| 14 | 14.000 | 355.6 | 0.188 | 4.78 | 27.97 | 41.62 |
| 16 | 16.000 | 406.4 | 0.188 | 4.78 | 32.02 | 47.65 |
| 18 | 18.000 | 457.0 | 0.188 | 4.78 | 36.05 | 53.65 |
| 20 | 20.000 | 508.0 | 0.218 | 5.54 | 46.42 | 69.09 |
| 22 | 22.000 | 559.0 | 0.218 | 5.54 | 51.14 | 76.10 |
| 24 | 24.000 | 610.0 | 0.250 | 6.35 | 63.93 | 95.13 |
| 30 | 30.000 | 762.0 | 0.312 | 7.92 | 99.60 | 148.22 |
Pipes & Tubes Pressure Ratings
| Schedule | Size of Pipes & Tubes (inches) | (°F) Temperature | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 200 | 100 | 300 | 500 | 400 | 600 | 700 | 650 | 750 | ||
| 80 | 1″ | 3634 | 4213 | 3265 | 2791 | 3002 | 2659 | 2528 | 2580 | 2501 |
| 40 | 1″ | 2629 | 3048 | 2362 | 2019 | 2171 | 1924 | 1824 | 1867 | 1810 |
| 40 | 1.5″ | 1947 | 2257 | 1750 | 1496 | 1608 | 1425 | 1354 | 1383 | 1340 |
| 160 | 1″ | 5296 | 6140 | 4759 | 4068 | 4375 | 3876 | 3684 | 3761 | 3646 |
| 160 | 1.5″ | 3984 | 4619 | 3580 | 3060 | 3291 | 2916 | 2772 | 2829 | 2743 |
| 80 | 1.5″ | 2744 | 3182 | 2466 | 2108 | 2267 | 2009 | 1909 | 1949 | 1889 |
| 80 | 2″ | 2369 | 2747 | 2129 | 1820 | 1957 | 1734 | 1648 | 1682 | 1631 |
| 40 | 2″ | 1640 | 1902 | 1474 | 1260 | 1355 | 1201 | 1141 | 1165 | 1129 |
| 40 | 3″ | 1558 | 1806 | 1400 | 1196 | 1287 | 1140 | 1084 | 1106 | 1072 |
| 160 | 2″ | 3880 | 4499 | 3486 | 2980 | 3205 | 2840 | 2699 | 2755 | 2671 |
| 160 | 3″ | 3312 | 3840 | 2976 | 2544 | 2736 | 2424 | 2304 | 2352 | 2280 |
| 80 | 3″ | 2202 | 2553 | 1979 | 1691 | 1819 | 1612 | 1532 | 1564 | 1516 |
| 80 | 4″ | 1909 | 2213 | 1715 | 1466 | 1577 | 1397 | 1328 | 1355 | 1314 |
| 40 | 4″ | 1321 | 1531 | 1187 | 1014 | 1091 | 967 | 919 | 938 | 909 |
| 40 | 5″ | 1158 | 1342 | 1040 | 889 | 956 | 847 | 805 | 822 | 797 |
| 160 | 4″ | 3106 | 3601 | 2791 | 2386 | 2566 | 2273 | 2161 | 2206 | 2138 |
| 80 | 5″ | 1709 | 1981 | 1535 | 1312 | 1411 | 1250 | 1189 | 1213 | 1176 |
| 160 | 5″ | 2945 | 3414 | 2646 | 2262 | 2433 | 2155 | 2049 | 2091 | 2027 |
| 80 | 6″ | 1650 | 1913 | 1483 | 1267 | 1363 | 1208 | 1148 | 1172 | 1136 |
| 40 | 6″ | 1052 | 1219 | 945 | 808 | 869 | 770 | 732 | 747 | 724 |
| 40 | 8″ | 926 | 1073 | 832 | 711 | 765 | 678 | 644 | 657 | 637 |
| 160 | 6″ | 2836 | 3289 | 2549 | 2179 | 2343 | 2076 | 1973 | 2014 | 1953 |
| 160 | 8″ | 2738 | 3175 | 2460 | 2103 | 2262 | 2004 | 1905 | 1944 | 1885 |
| 80 | 8″ | 1459 | 1692 | 1311 | 1121 | 1205 | 1068 | 1015 | 1036 | 1005 |
| 80 | 10″ | 1388 | 1609 | 1247 | 1066 | 1147 | 1016 | 966 | 986 | 956 |
| 40 | 10″ | 840 | 974 | 755 | 945 | 694 | 615 | 584 | 596 | 578 |
| 160 | 10″ | 2714 | 3147 | 2439 | 2085 | 2242 | 1986 | 1880 | 1927 | 1868 |
